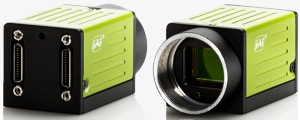

Camera Link Area scan camera JAI GO-5101M-PMCL | GO-5101C-PMCL JAI GO-5101M-PMCL | GO-5101C-PMCL
Camera Link Camera
Sony IMX264 Sensor
2464x2056 Resolution
Area Scan Camera

get a quote for this product

GO-5101M-PMCL (mono) and GO-5101C-PMCL Camera Link cameras are built with a Sony IMX264 2/3" sensor enabling imaging at 5.1 megapixels at 35 frames per second.

JAI GO Series and GOX Series GigE, USB3, CoaXPress, and camera link cameras feature CMOS technology, low-noise pixels, global shutters, sequencer functions, and other advanced features that ensure image quality and excellent performance at a great price/performance ratio.

With their compact size (29 x 29 x 41.5 mm excluding lens mount) and weighing less than 50 grams, they are suitable for applications with tight space constraints. In addition, they have been tested for extensive shock (80G) and vibration (10G), and are encased in robust housing making them ideal for harsh industrial environments.

JAI Go Series / Go-X Series Family Features

  • 2.35 to 5MP on 2/3" to 1" format
  • 2/3" to 1" format CCD
  • Up to 165 fps
  • Lowest cost models

GO-5101M-PMCL | GO-5101C-PMCL Camera Features

  • 2/3" format, 5MP IMX264 sensor w/global shutter sensor for moving objects @ 35.6fps
  • Exposure control from 14 µs to 8 seconds
  • 10G vibration, 80G shock rating
  • 2X binning for increased speed/sensitivity (mono only)
Manufacturer: JAI Model: GO-5101M-PMCL
GO-5101C-PMCL
Total Pixels: 5,065,984
Resolution: 2464 (h) 2056 (v) Sensor Size: 2/3" Color/B & W: Color / Monochrome
Frame Rate (fps): 35 Sensor Type: CMOS Sensor Device: Sony IMX264
Pixel Size(µm): 3.45(h) 3.45(v) A/D Bits: 10 Shutter Speed: 14µs to 8000000µs
Interface: Camera Link Voltage(VDC): 12-24V Power(watts): 2.9
Lens Mount: C Shutter Type: Global Weight(grams): 46
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 29Lx29Wx41.5H
